Meet JUSTFOG’s new product line up using JUSTFOG Cotton Coil Valued as the safest coil in vaping market over the last few years.

Tender in taste and Rich in Vapor.
Carefully chosen Cotton and Optimally processed Coil.
Most Efficient structure completed with 10 years Know-how

Resistancs1.2Ω(red) / 1.6Ω(black)
Voltage3.2V ~ 4.4V

Specification

Capacity(Pod) : 1.9 ml
Coil Cylinder: OCC Bottom coil / 1.6 Ω
Material: PC, Chrome Coated Brass
Dimensions: 16.8 X 23.6 X 38.4 mm / 11.5 g

Capacity(Battery) : 900 mAh
Voltage: 3.8 / 4.2 V (Boost Mode)
Charging: Micro 5-pin USB, DC 5V
Material: Anodized-Al, PC
Dimensions: 16.8 X 24.3 X 82.8 mm / 34.6 g

Specification

Capacity(Pod) : 1.9 ml
1X QPOD Kit
1X USB Cable
1X User Manual
1X Safety Guide

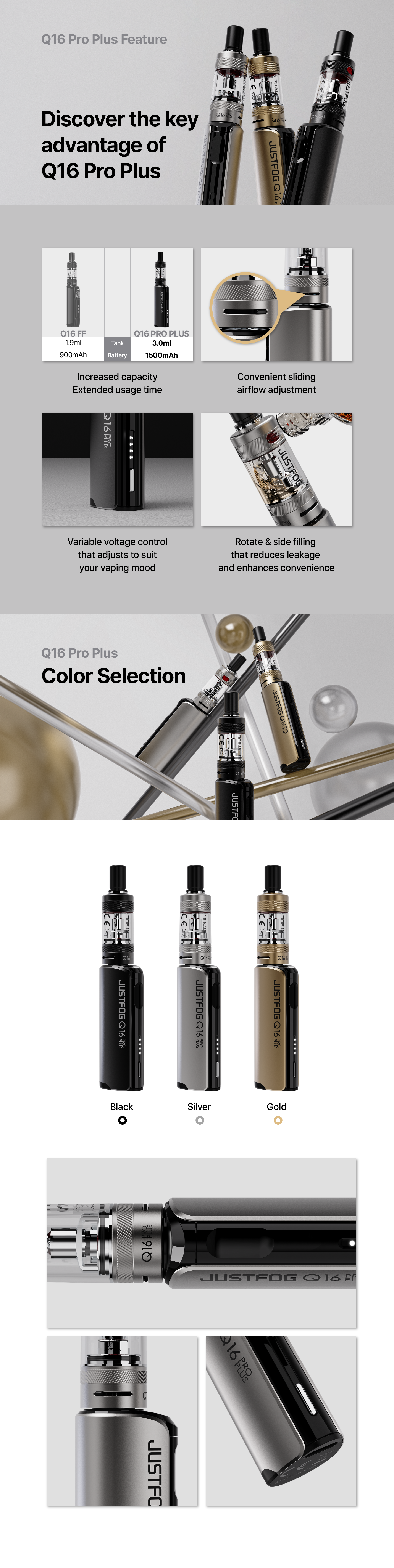

Color

Majestic Green
Burgundy Red
Smoke gray Silver
Chacoal Black

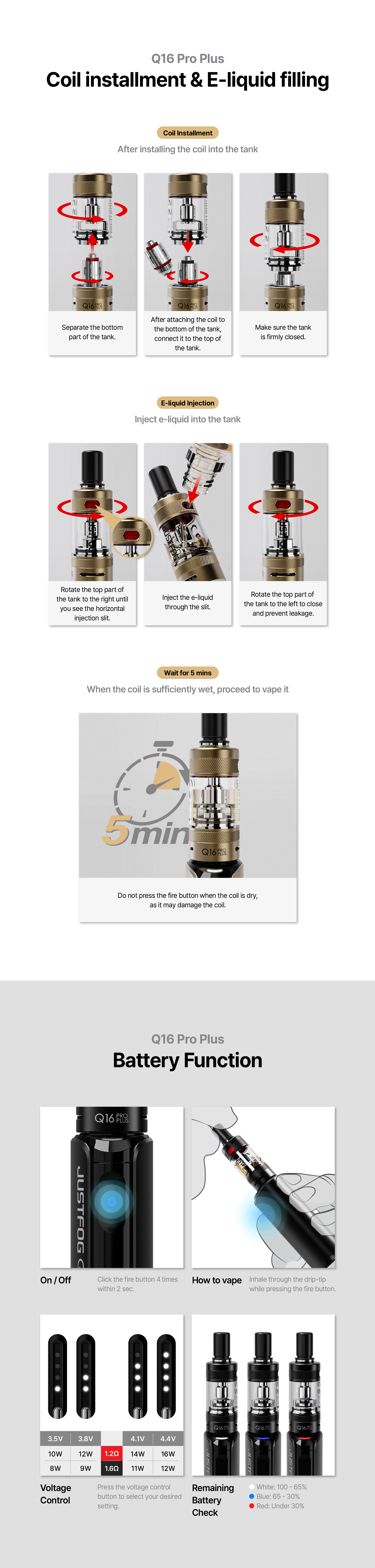

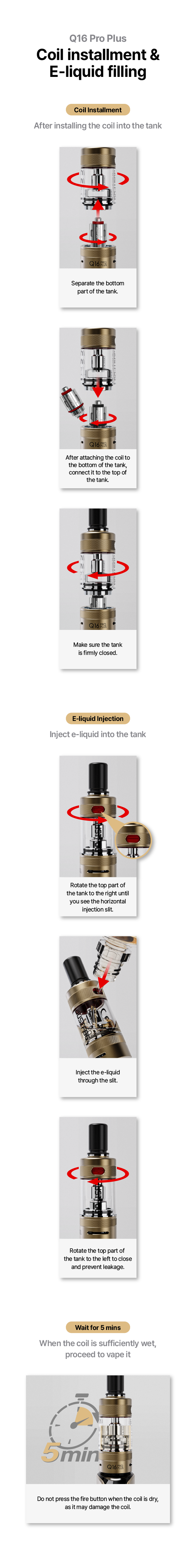

E-liquid Injection

E-liquid can be easily filled up through a side hole on the pod
without separating the pod from the battery

1
Gently pull the rubber strip from the top to open. Be careful the rubber strip is not completely off.
2
Fill up the e-liquid through the hole and close the pod. Leave the pod until the coil is sufficiently wet.
3
When the e-liquid remains in the pod, do not leave the hole open. It may cause a leakage.

Coil Connection

1
Lift up the handle from the bottom cap of the pod and rotate it counter clockwise to open the pod.
2
Connect the 1.6Ω coil on the cap.
3
Place the 1.6Ω coil connected bottom cap into the pod and lock it well.

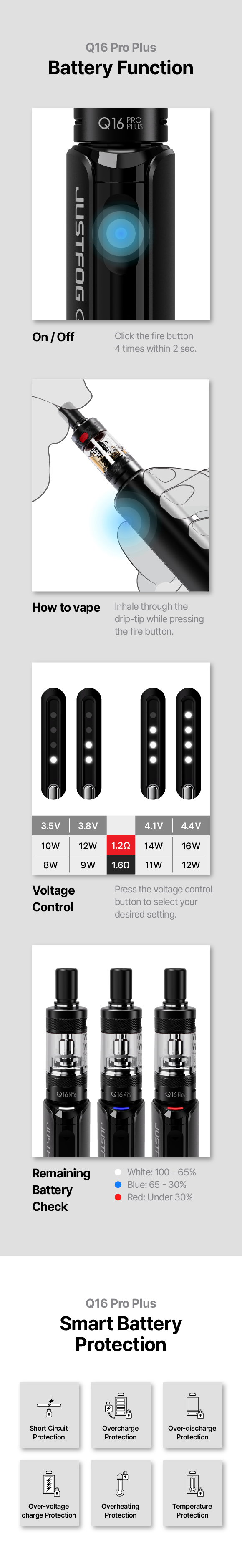

Basic Function

On/Off: 4 clicks of the fire button within 2 seconds.
Boost mode: Press the boost button on the lower side of the battery to raise the voltage from 3.8V to 4.2V.
Remaining battery indication: Fire button LED color change:

white(100 – 65%)

blue(65 – 30%)

red(under 30%)
Temperature Protection When temperature of battery circuit(PCBa) reaches to 75℃, power shuts down automatically and LED blinks 4 cycles in White – Red sequence.

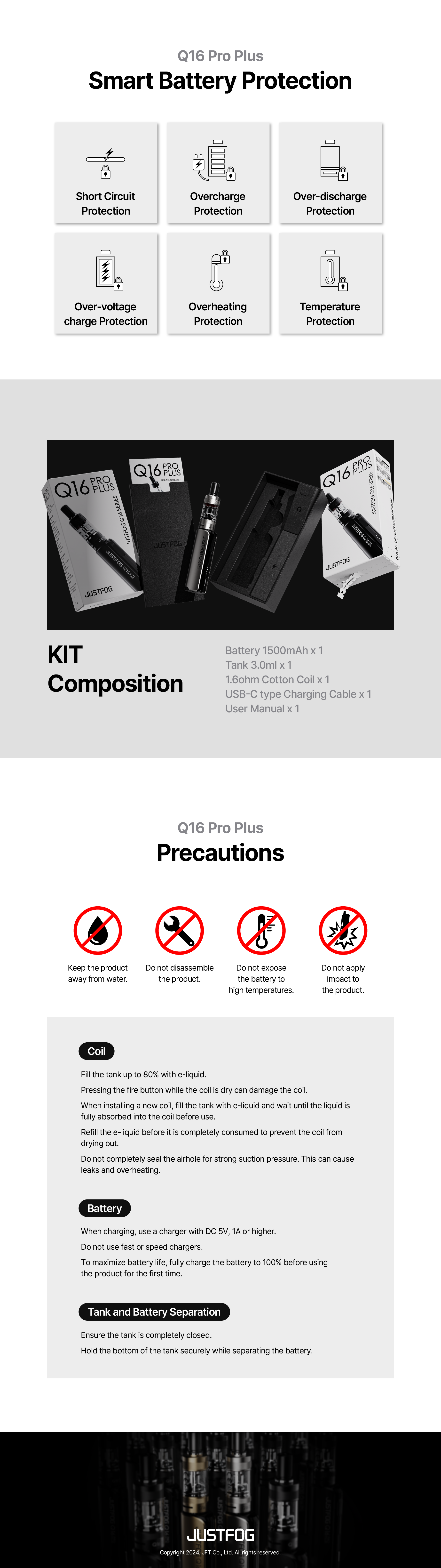

Smart battery protection functions

Constant Voltage
Function

Compact14 battery delivers conatant voltage that keeps the
flavor and vapor production of the device constant regardless
of the residual power in it.

Smart Protection
Function

· Short Circuit Protection

LED blinks 2 cycles in white – blue – red sequence.
When short circuit occurs for any reason while connecting the battery and the pod, the protection circuit automatically cuts off the power to prevent any damage to the battery.
· Overcharge Protection

LED blinks 2 cycles in white – blue – red sequence.
When short circuit occurs for any reason while connecting the battery and the pod, the protection circuit automatically cuts off the power to prevent any damage to the battery.
· Overdischarge Protection

Before the battery is fully discharged, LED light will blink and the protection circuit will cut off the power to prevent any performance degradation of the battery
· Overdischarge Protection

If charging voltage is higher than 6V, the circuit will automatically block the charge current.
· Overdischarge Protection

If the air draw is activated more than 10 seconds, LED blinks 4 cycles in white – blue – red sequence and the protection circuit will shut down the power to prevent overheating in the battery and the clearomizer
